Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-IR-200 |
| سند: | 5 Meters IR Drying Machine.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوبی |
| زمان تحویل: | 10 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| ویژگی های ایمنی: | حفاظت از گرمای بیش از حد | نوع: | ماشین خشک کن |
|---|---|---|---|
| تسمه نقاله: | کمربند شبکی تفلون | ولتاژ: | 220 ولت |
| قدرت: | 2000 ولت | عملکرد: | لیوان پلاستیکی خشک کن سریع |
| تنظیم تایمر: | 1-60 دقیقه | تضمین: | 1 سال |
| روش گرم کردن: | فرو سرخ | رنگ: | کامپیوتر سفید |
| عرض خشک موثر: | 200 میلی متر | نور: | لوله IR مادون قرمز |
| شرایط: | جدید | ||
توضیحات محصول
Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Product Description

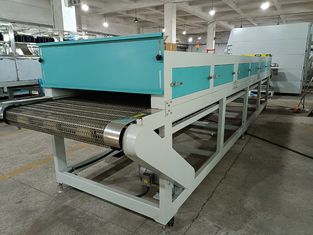

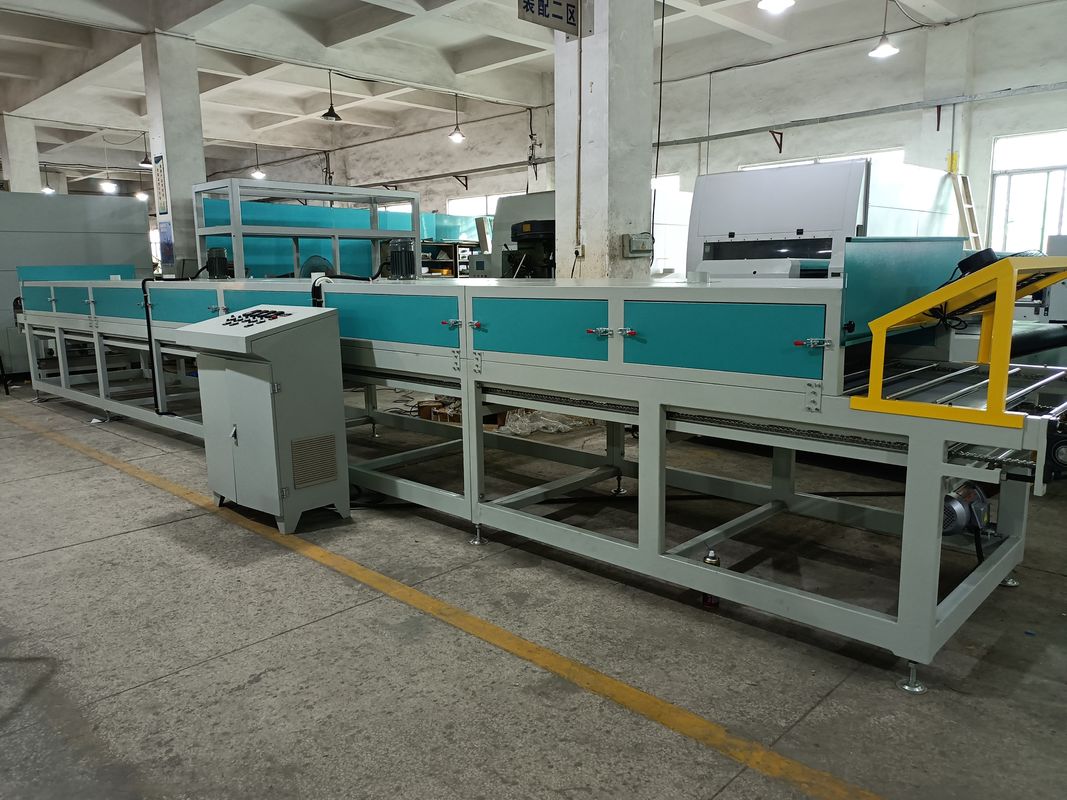

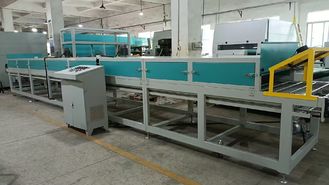

The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
Technical Parameters
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |

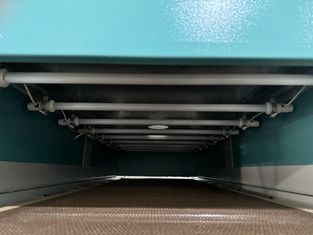

| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |

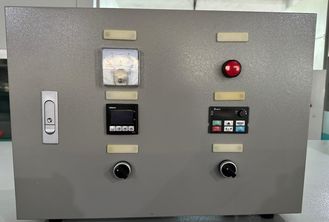

| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
Application
✔ Printing Industry: Drying UV inks on packaging materials.
✔ Electronics: Curing adhesives on PCB boards.
✔ Textiles: Heat-setting for synthetic fabrics.
Customization
-
Adjustable belt width (standard: 200mm).
-
Optional additional heating zones for higher temperatures.
Key Features
✅ Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens.
✅ Precision Control: Delta inverter ensures stable speed and temperature.
Support and Services
-
24/7 technical support via 400-666-2388.
-
On-site installation available in China.
Packing and Shipping
-
Wooden crate packaging (IP65 standard).
-
FOB Dongguan, lead time: 15 days.
FAQ
Q: Can it handle flammable materials?
A: Yes, with optional nitrogen atmosphere customization.
