Pulp Molded Food Container Waterproof Coating High-Efficiency Automatic Spraying Production Line
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-PT-1320 |
| سند: | automatic spray coating mac...ne.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 35 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| ولتاژ: | 220V ، 380V ، 380V/220V ، 220V/380V ، 380V/50Hz | وضعیت: | جدید |
|---|---|---|---|
| بعد (l*w*h): | اندازه سفارشی ، 40000*2950*2300mm | ضمانت: | 1 سال |
| سطح مانینگ: | 3-5 | نام محصول: | خط ماشین پوشش اسپری |
| سرعت روکش: | 1-15 متر در دقیقه | ||
توضیحات محصول

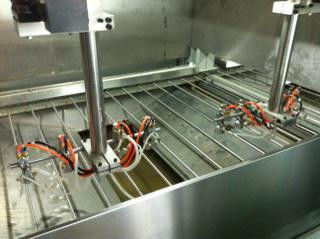

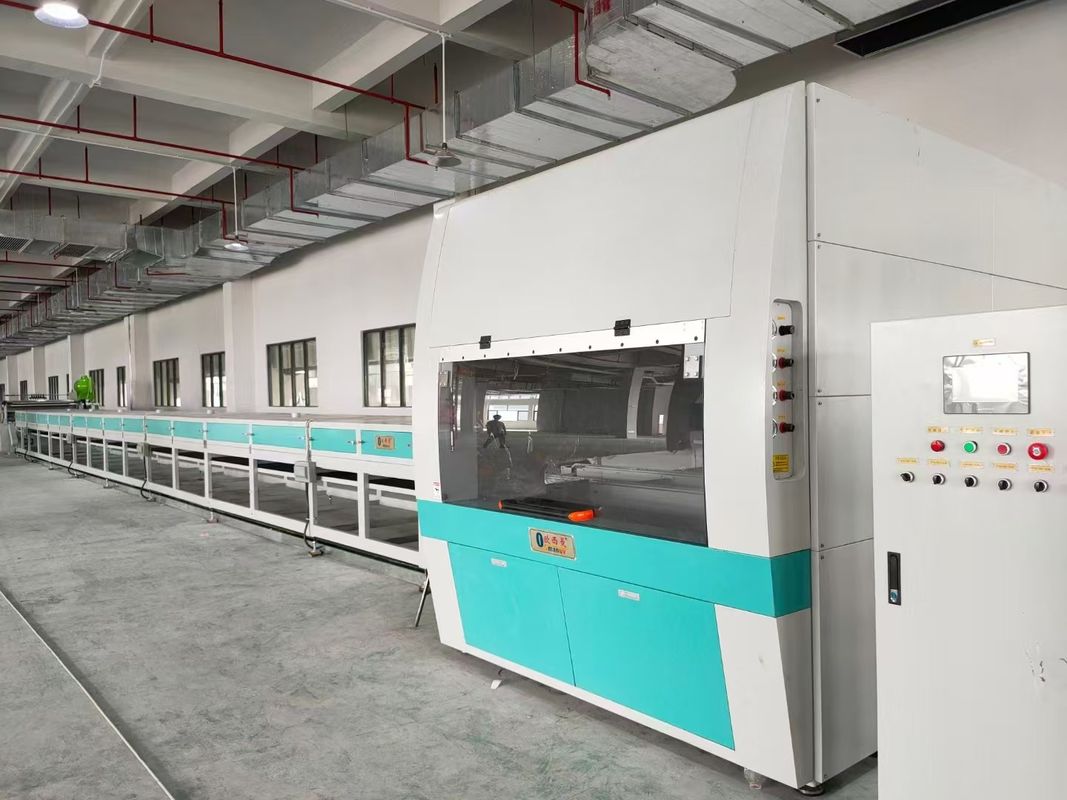

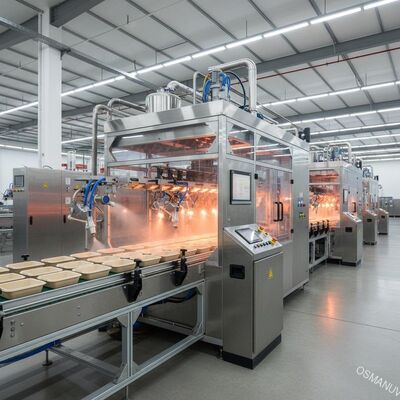

Pulp Molded Food Container Waterproof Coating High-Efficiency Automatic Spraying Production Line
Composition of Production Line:
- Automatic loading system
- 6-axis robotic spraying units
- Conveyor system with precision positioning
- UV curing tunnel (optional)
- Drying oven with temperature control
- Unloading and stacking system
- PLC control system with HMI interface
- Exhaust and filtration system
Product Description:
This automated spraying production line is specifically designed for applying waterproof coatings to pulp molded food containers. It ensures uniform coating coverage, excellent barrier properties, and high production efficiency while meeting food safety standards.
Technical Parameters:
| Parameter Category | Specification | Notes |
|---|---|---|
| Production Capacity | 800-1200 pcs/hour | Customizable based on product size |
| Coating Thickness | 20-50μm | Precision controllable |
| Positioning Accuracy | ±0.5mm | High precision robotic system |
| Line Speed | 2-8 m/min | Adjustable via VFD |
| Power Supply | 380V/50Hz/3Phase | Customizable voltage available |
| Air Consumption | 1000L/min @ 0.6MPa | Clean dry air required |
| Control System | Siemens PLC + 10" HMI | Recipe management system |
Application:
Specifically designed for waterproof coating application on pulp molded food containers, tableware, and packaging products requiring moisture resistance.
Customization:
Highly customizable spraying patterns, conveyor speed, drying temperature, and coating thickness to meet specific product requirements and production volumes.
Feature:
- Automated Operation: Reduced labor costs and consistent quality
- Precision Coating: Uniform coating thickness control
- Food Safety: Meets FDA and EU food contact standards
- Energy Efficient: Optimized energy consumption design
Support and Services:
Installation supervision, operator training, technical support, spare parts supply, and regular maintenance services with 12-month warranty.
Packing and Shipping:
Weatherproof wooden crates with internal shock-absorbing materials. All components clearly labeled and packed separately. Shipping via sea freight or air freight.
FAQ:
- Q: What is the minimum order quantity?
A: We offer customizable solutions for both small and large production volumes, with MOQ starting from 1 complete production line. - Q: Can the line handle different container sizes?
A: Yes, the system is customizable with quick-change fixtures and programmable recipes for different product sizes.
