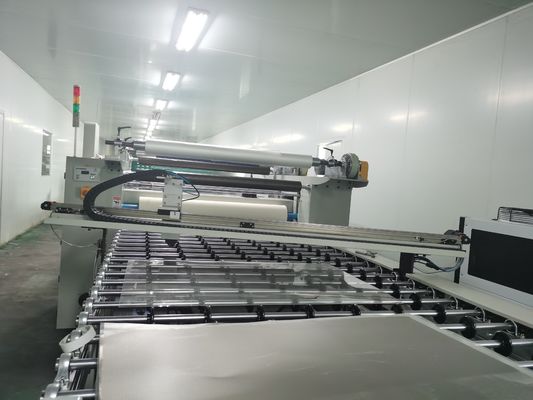

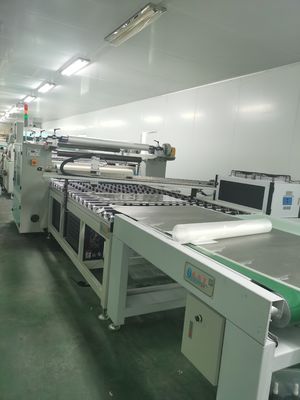

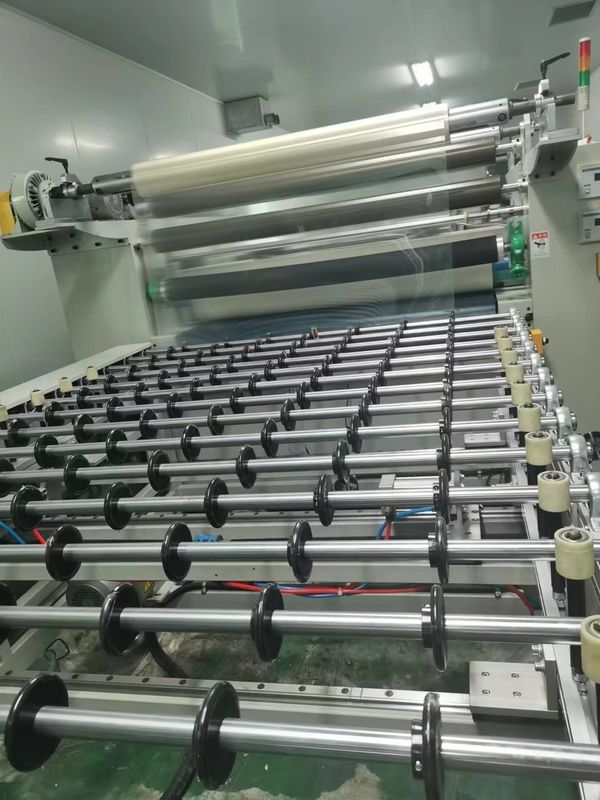

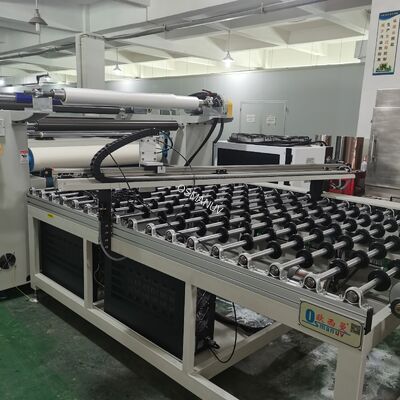

Furniture Board Wear-Resistant Film Laminating Production Line with High Efficiency
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-FM-1320 |
| سند: | film Lamintaing.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 40 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| نام محصول: | تخته مبلمان خط تولید لمینیت فیلم مقاوم به سایش با راندمان بالا | ولتاژ: | 380V ، 220V ، 220V/110V ، 380V/50Hz ، 380V/220V |
|---|---|---|---|
| وضعیت: | جدید | ضمانت: | 1 سال |
| نوع: | دستگاه لمینیت ، کارخانه کاملاً اتوماتیک فیلم لمینیت حرارتی | درخواست: | ماشین آلات و سخت افزار ، کالا ، پزشکی ، شیمیایی ، غذا |
| قدرت: | 12 کیلو وات ، 50 کیلو وات ، 3 کیلو وات ، 2.5 کیلو وات ، 220V 50Hz | ||
| برجسته کردن: | furniture board laminating machine with warranty,wear-resistant film laminating production line,high efficiency film laminating machine,wear-resistant film laminating production line,high efficiency film laminating machine |
||
توضیحات محصول
Furniture Board Wear-Resistant Film Laminating Production Line with High Efficiency
1. Composition of Production Line
- Automatic board loading/unloading system
- Surface pretreatment unit (cleaning/plasma treatment)
- Precision adhesive application system
- High-pressure film laminating unit
- CNC trimming and edge finishing system
- Quality inspection with vision system
- Centralized PLC control with IoT connectivity
2. Product Description
This automated film laminating production line specializes in applying wear-resistant decorative films to various furniture boards (MDF, particle board, plywood). It ensures perfect film adhesion with scratch and stain resistance, making it ideal for high-quality furniture manufacturing.
3. Technical Parameters:
| Parameter Category | Specification | Notes |
|---|---|---|
| Max. Board Width | 0-1320 mm | Customizable to specific requirements |
| Production Speed | 1-20 m/min | Adjustable based on material |
| Laminating Accuracy | ±0.15 mm | Laser guiding system |
| Operating Pressure | 50-150 tons | Customizable pressure settings |
| Temperature Control | 50-200°C ±1°C | PID precision control |
| Power Requirement | 380V/50Hz/100kW | Customizable voltage options |
4. Application
- Office furniture manufacturing
- Kitchen cabinet production
- Wardrobe and storage systems
- Commercial furniture applications
5. Customization
- Width Options: Customizable from 600mm to 2800mm
- Film Compatibility: Adaptable for PVC, PP, PET, decorative films
- Automation Level: From semi-auto to fully robotic systems
- Special Features: Optional embossing or texture patterns
6. Feature
- High Efficiency: Automatic feeding and stacking systems
- Precision Control: CNC-controlled temperature and pressure
- Quality Assurance: Integrated vision inspection system
- Energy Saving: Heat recovery system reduces energy consumption
7. Support and Services
- Installation and commissioning supervision
- Comprehensive operator training
- 24/7 technical support with remote monitoring
- 18-month warranty on main components
8. Packing and Shipping
- Heavy-duty export packaging
- Weatherproof wooden crates
- Professional logistics planning
- Worldwide shipping available
9. FAQ
- Q: What is the minimum order quantity?
A: We provide customizable solutions from single machines to complete production lines. - Q: Can the line handle different board materials?
A: Yes, the system is customizable for MDF, particle board, plywood, and other substrates.
