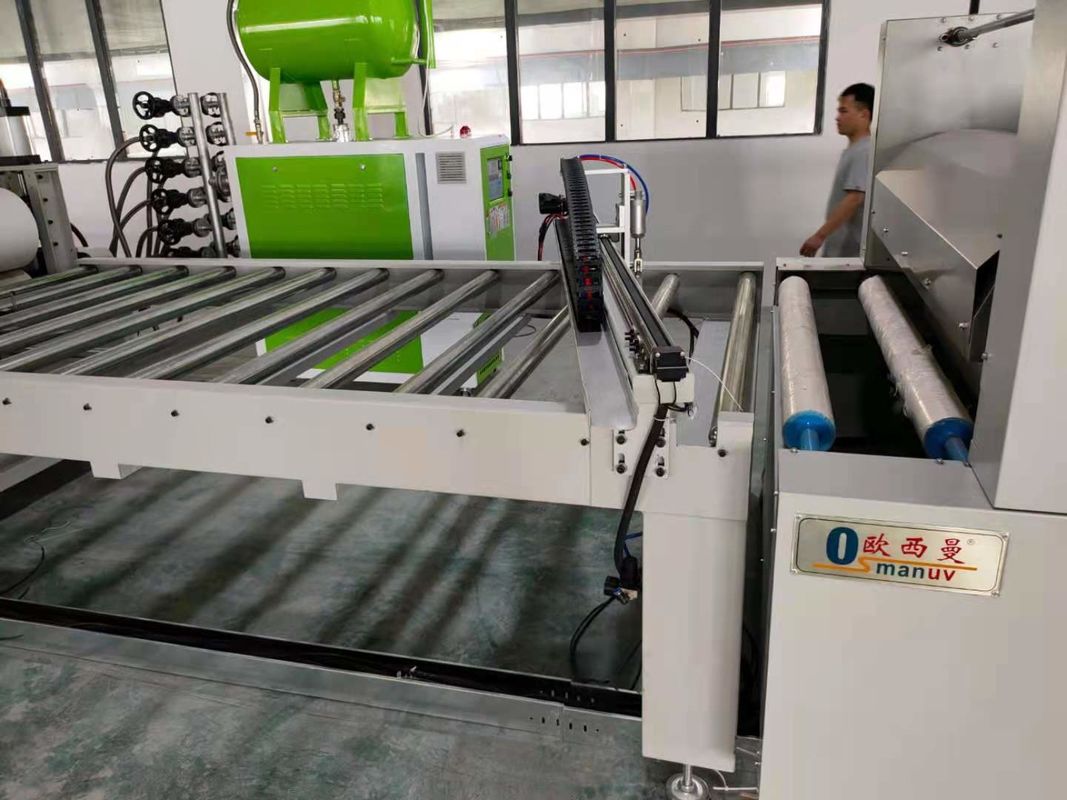

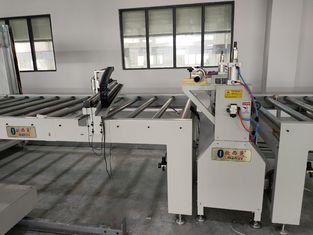

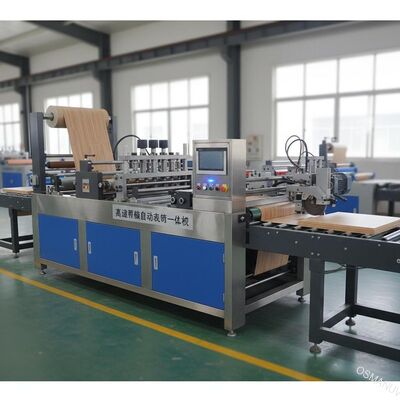

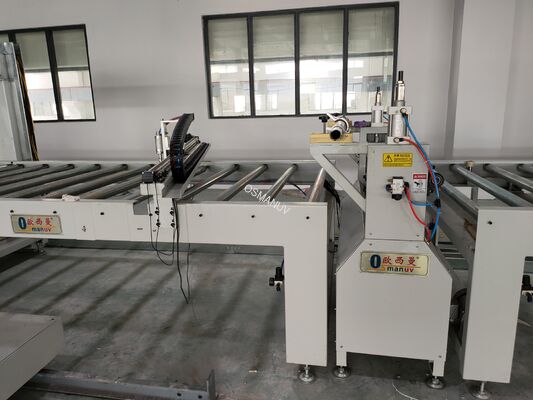

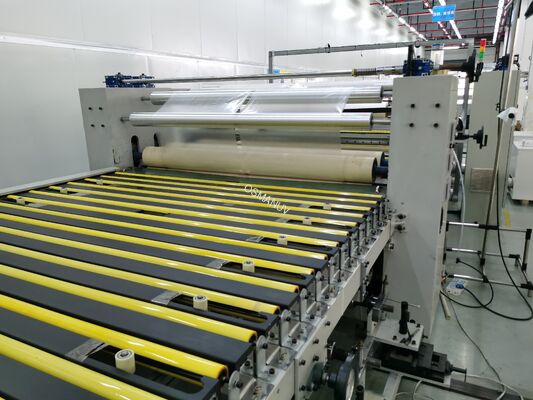

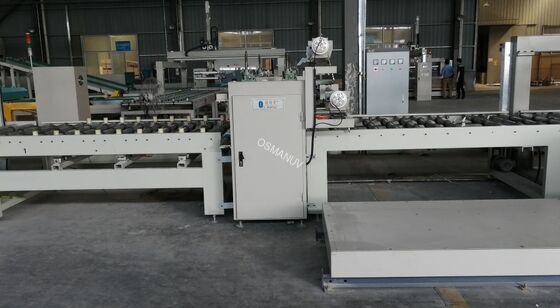

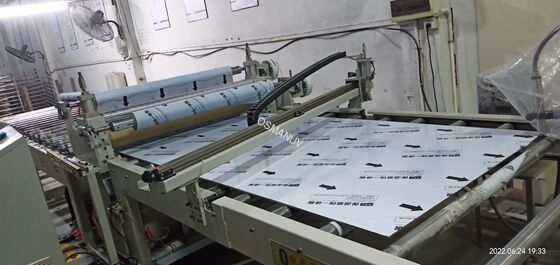

High-Speed Film Laminating Machine with Automatic Cutting for Decorative Wood Grain Applications
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-FM-1320 |
| سند: | film Lamintaing.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 40 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| جهت کار ماشین: | چپ به راست | ارتفاع ماشین: | 30 ± 850 میلی متر (از زمین تا کمربند نقاله) |
|---|---|---|---|
| ابعاد کلی: | 6300 میلی متر × 1550mm × 1200mm | حداقل طول انتقال: | 300 میلی متر |
| نام محصول: | ماشین لامینینگ فیلم با کارایی بالا | وضعیت: | جدید |
| ضمانت: | 1 سال | ||
| برجسته کردن: | automatic cutting film laminating machine,high-speed wood grain laminator,decorative film laminating machine,high-speed wood grain laminator,decorative film laminating machine |
||
توضیحات محصول
High-Speed Film Laminating Machine with Automatic Cutting for Decorative Wood Grain Applications
Product Description:
This high-speed film laminating machine with automatic cutting function is specialized for applying wood grain films to metal composite panels. It delivers aesthetic appeal and durability for architectural applications.
Technical Parameters:
| Parameter Category | Specification |
|---|---|
| Effective Working Width | 0-1320mm |
| Conveyable Material Thickness | 3-80mm |
| Conveying Speed | 1-20m/min |
| Drive Roller Diameter | Ø150 mm |
| Auxiliary Drive Roller Diameter | Ø150 mm |
| Drive Roller Length | 1320mm |
| Auxiliary Drive Roller Length | 1320mm |
|
Machine Length |
500 mm |
Application:
- Metal composite panels for architectural cladding
- High-end appliance surfaces
- Luxury furniture and fixtures
Customization:
- Metal Types: Customizable with options for aluminum, stainless steel.
- Film Patterns: Wood grain, metallic, color films.
- Automation: Optional robotic integration.
Feature:
- Precision Cutting: Automatic cutting with CNC system.
- Bubble-Free Laminating: Vacuum technology ensures perfect adhesion.
- Smart Control: Real-time monitoring with data analytics.
Support and Services:
- On-site installation and calibration.
- 24-month warranty on cutting systems.
Packing and Shipping:
- Climate-controlled packaging with GPS tracking.
- Worldwide logistics support.
FAQ:
Q: Can the machine handle large-sized panels?
A: Yes, the machine can be customized with extensions for panels up to 3000 mm.
می خواهید اطلاعات بیشتری در مورد این محصول بدانید
