Gas-Fired Drying Tunnel for Wood Panel Coating Curing: High-Temperature Finishing Oven for MDF and Particle Board
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-TRQ-920 |
| سند: | Natural Gas Drying Machine.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 45 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| نام محصول: | خط دستگاه خشک کردن گاز | انتقال گسترده است: | 920 میلی متر |
|---|---|---|---|
| سرعت خط تولید: | 1-20 متر در دقیقه | نیروگاه برقی: | 35.5 کیلووات |
| اندازه ماشین: | 90000 میلی متر*1650mm*2250mm | چرخه تولید: | 35-45 روز |
| برجسته کردن: | gas-fired wood panel drying tunnel,high-temperature MDF curing oven,industrial particle board finishing oven,high-temperature MDF curing oven,industrial particle board finishing oven |
||
توضیحات محصول

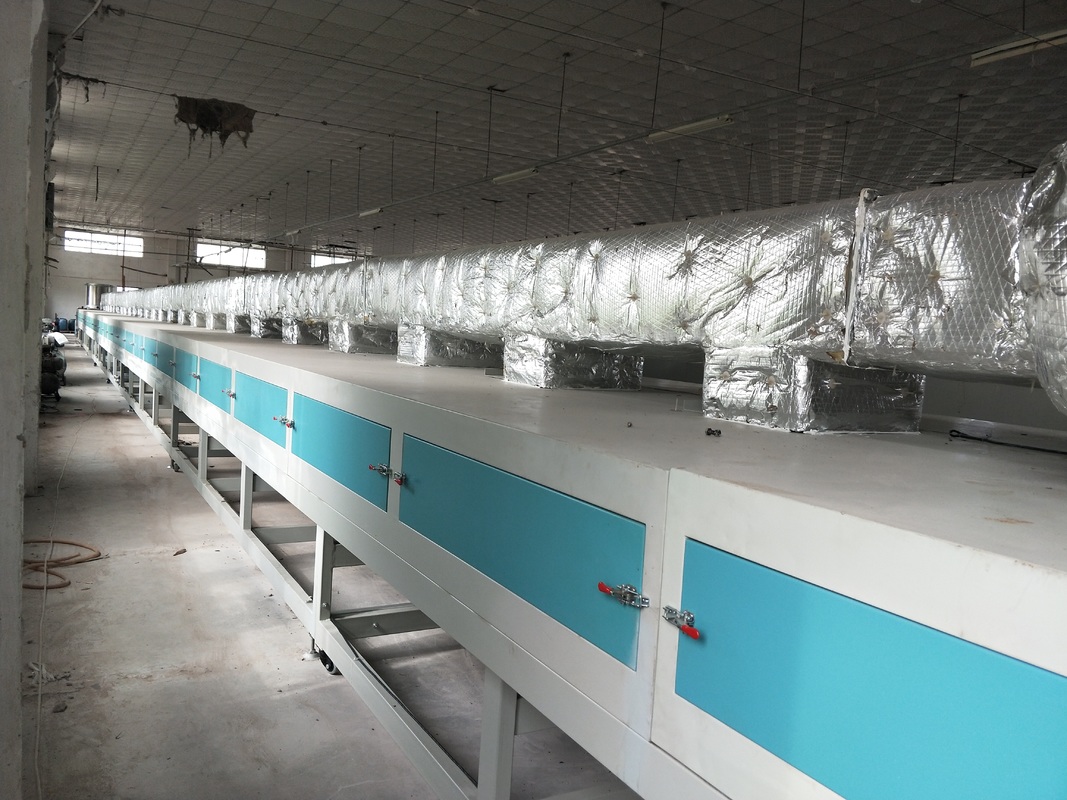

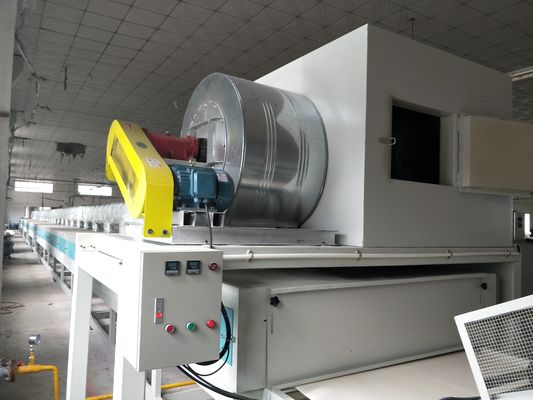

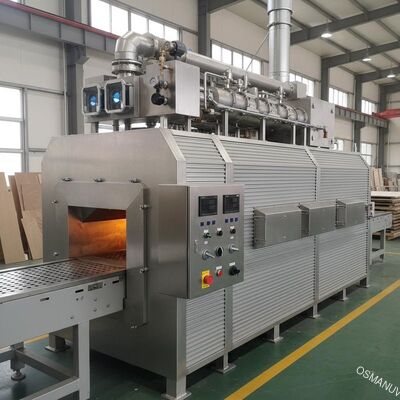

Gas-Fired Drying Tunnel for Wood Panel Coating Curing: High-Temperature Finishing Oven for MDF and Particle Board
-
Composition of Production Line:
This line features a powder-coated steel structure, chain or roller conveyor system, high-velocity heated air plenums, energy recovery system, automatic fire suppression system, and advanced emission control unit. -
Product Description:
This heavy-duty gas-fired drying tunnel is designed for the rapid curing of coatings on wood-based panels like MDF, particle board, and HDF. It provides the high temperatures and intense air movement required to quickly cross-link and harden UV, water-based, and solvent-based coatings, resulting in a durable, scratch-resistant finish. The direct-fired system offers maximum thermal efficiency for demanding factory environments. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-TRQ-920 |
| Suitable Product | MDF, Particle Board, HDF, Plywood Panels |

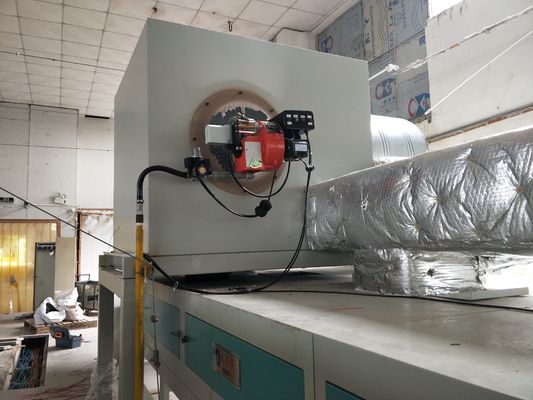

| Heat Source | Direct Gas-Fired Air Make-up System |
| Max. Operating Temp | 250°C |
| Conveyor Width | 2200 mm (Customizable) |
| Panel Thickness | 3mm - 50mm |
| Energy Recovery | Optional Air-to-Air Heat Exchanger |
| Control System | PID temperature control with data logging |
-
Application:
Curing painted or coated furniture panels, cabinet doors, laminate flooring, and other engineered wood products. -
Customization:
The tunnel is highly customizable. Options include different conveyor systems (chain, roller, flat-top), varying heat recovery systems to improve efficiency, and custom lengths to achieve the required cure time at your line speed. -
Feature:
-
Fast Curing Times: High air temperature and velocity drastically reduce curing time.
-
High Efficiency: Direct-fired system puts 100% of the heat into the oven.
-
Robust Construction: Built to withstand harsh industrial conditions.
-
Enhanced Safety: Integrated flame supervision and fire suppression systems.
-
-
Support and Services:
Commissioning by certified engineers, compliance documentation for safety systems, and preventative maintenance contracts. -
Packing and Shipping:
Major structural sections are pre-assembled. Internal components like burners and fans are packed securely within the sections to minimize site work. -
FAQ:
Q: Is a direct-fired system safe for curing coatings?
A: Yes, when designed correctly. Our systems use 100% fresh air make-up, and the combustion gases are thoroughly mixed and diluted to safe levels before contacting the product. This is a standard and efficient method for industrial curing ovens.
