Furniture Board Curtain Coating Machine High-Gloss Surface Finishing System for Wood-Based Pane
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-LT-1320T |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 35 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| نام محصول: | دستگاه روکش پرده به سبک اروپایی | بعد (l*w*h): | اندازه سفارشی، 6000 میلی متر × 2200 میلی متر × 1400 میلی متر |
|---|---|---|---|
| وزن: | 200 کیلوگرم | ضخامت پردازش: | 3-80 میلی متر |
| قدرت انتقال: | 2.2 کیلو وات | سرعت روکش: | 5-80 متر در دقیقه، تنظیم سرعت بدون پله |
| ضمانت: | 1 سال | وضعیت: | جدید |
| برجسته کردن: | furniture board curtain coating machine,high-gloss surface finishing system,wood-based panel coating machine,high-gloss surface finishing system,wood-based panel coating machine |
||
توضیحات محصول

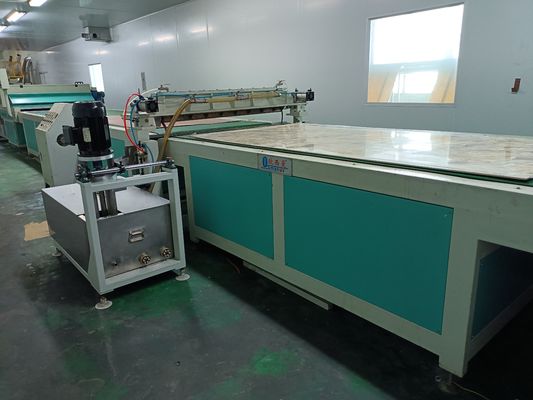

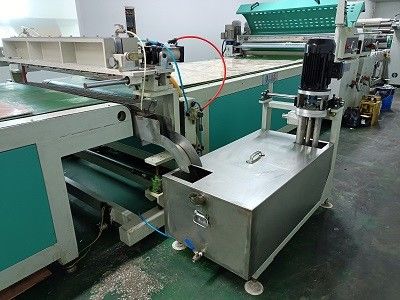

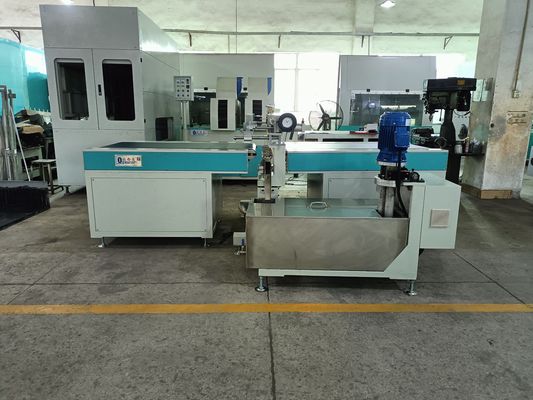

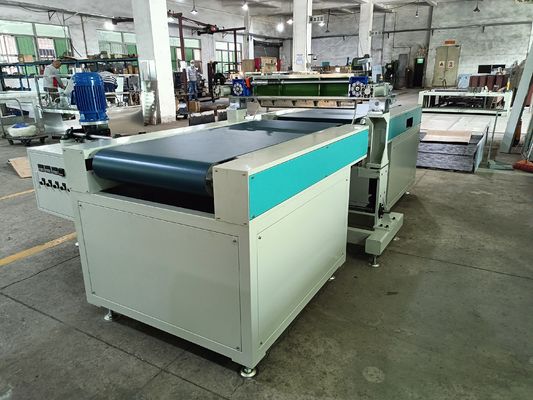

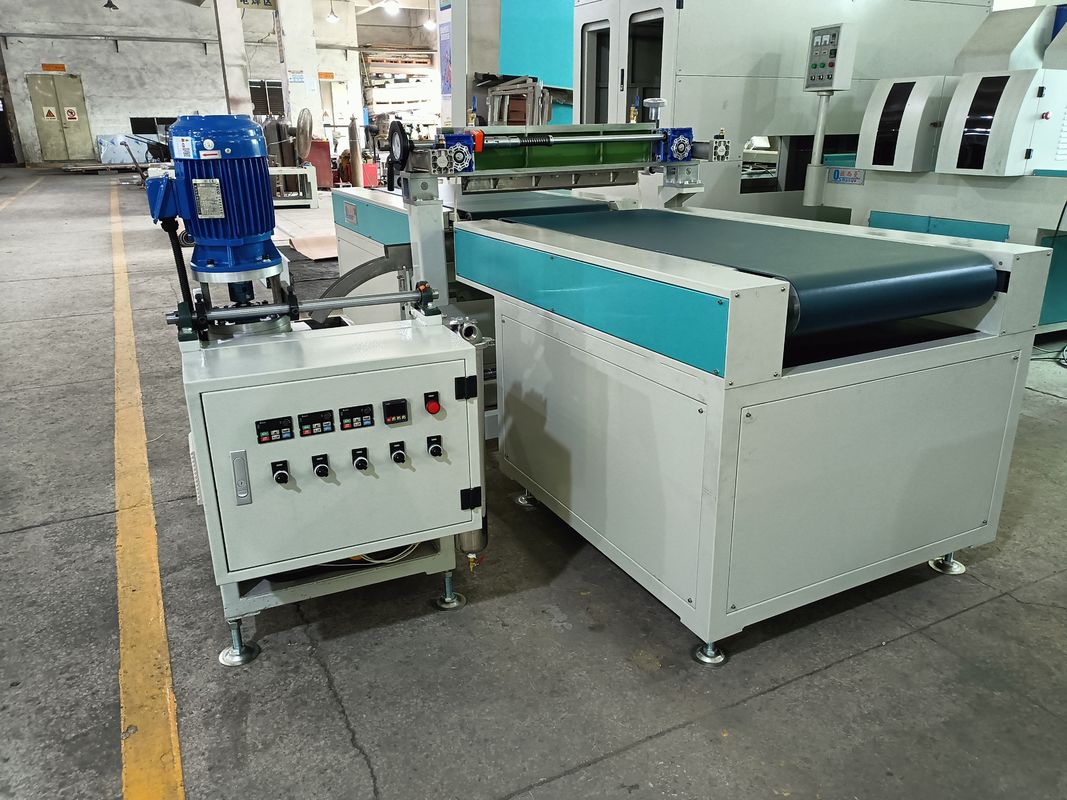

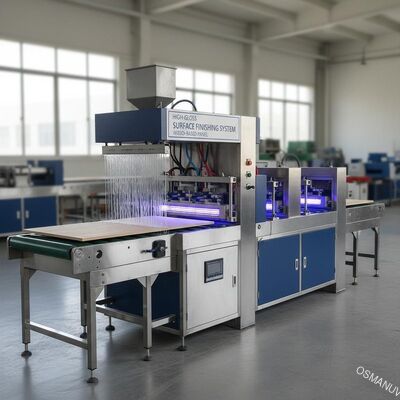

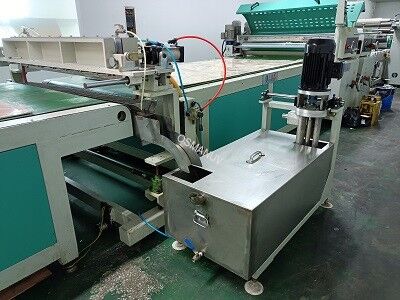

Furniture Board Curtain Coating Machine High-Gloss Surface Finishing System for Wood-Based Panels
Product Description
This precision curtain coating machine is engineered for furniture boards and wood-based panels, delivering flawless high-gloss finishes with exceptional uniformity. The system utilizes advanced curtain flow control technology to achieve perfect surface leveling and outstanding visual quality for premium furniture manufacturing.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-LT-1320T |
| Coating Width | 1320 mm (Customizable) |
| Coating Thickness | adjustable |
| Line Speed | 5-25 m/min |
| Viscosity Range | 100-1500 mPa·s |
| Accuracy | ±2 μm thickness control |
| Control System | PLC with recipe management |
Application
High-quality coating of furniture panels, cabinet doors, wooden boards, and decorative surfaces requiring premium finish quality.
Customization
-
Customizable coating width from 1800mm to 3200mm
-
Customizable curtain head configuration
-
Customizable drying system integration
Feature
-
Perfect surface leveling
-
High gloss achievement
-
Minimal material waste
-
Consistent coating quality
Support and Services
-
Installation and commissioning
-
Process optimization
-
Operator training
-
Technical support
Packing and Shipping
-
Heavy-duty wooden crate
-
Professional packaging
-
Weather protection
FAQ
Q: What surface quality can be achieved?
A: The system guarantees over 95% surface uniformity with excellent gloss consistency.
