High Capacity 14-Stage Microwave Drying Machine for Pulp and Herb Processing
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMNAUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-WBHG-1320T |
| سند: | microwave drying equipment.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 45 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| نام محصول: | دستگاه خشک کن مایکروویو 14 مرحله ای | عرض: | 1320 میلی متر |
|---|---|---|---|
| ولتاژ: | 380V/50Hz | قدرت: | 136 کیلووات |
| فرکانس مایکروویو: | 2450 مگاهرتز + 50 هرتز | سرعت روکش: | قابل تنظیم، 0.5-5 متر در دقیقه |
| گارانتی: | 1 سال | وضعیت: | جدید |
| برجسته کردن: | 14-stage microwave drying machine,industrial microwave dryer for pulp,herb processing drying machine,industrial microwave dryer for pulp,herb processing drying machine |
||
توضیحات محصول

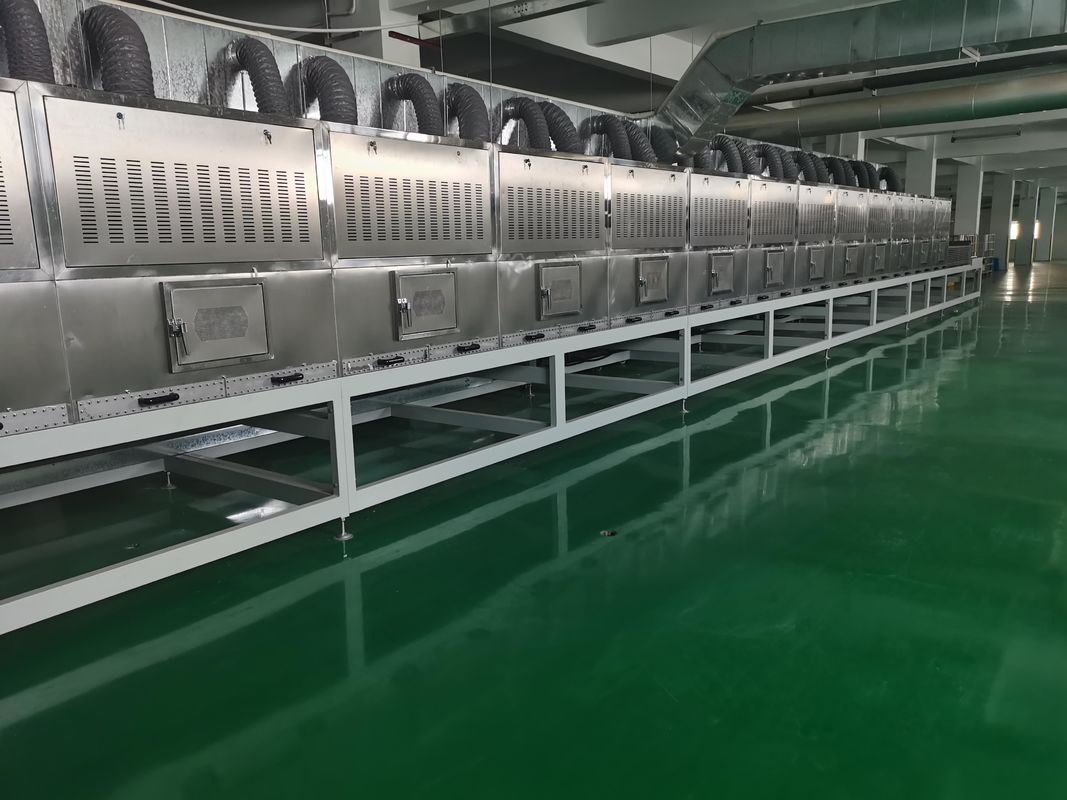

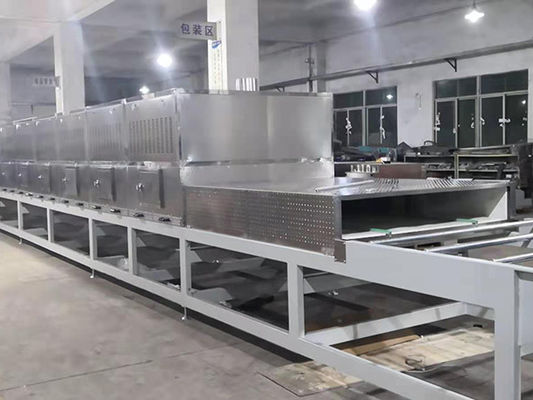

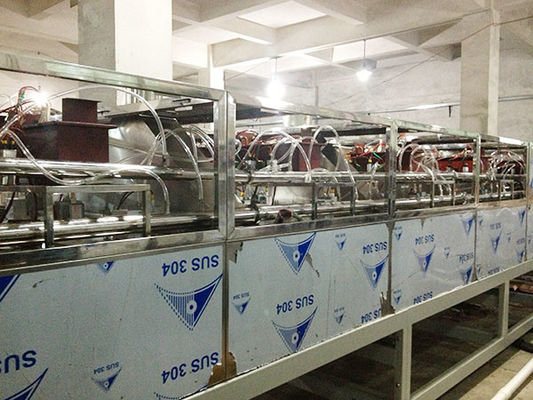

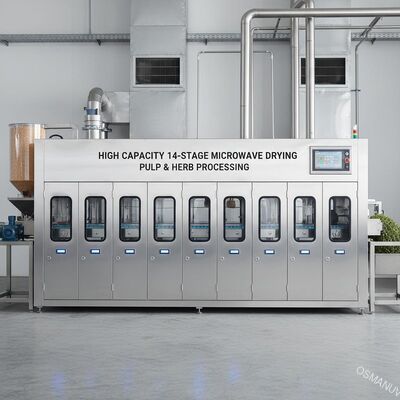

High Capacity 14-Stage Microwave Drying Machine for Pulp and Herb Processing
Product Description
This high-capacity 14-stage microwave drying tunnel is a heavy-duty solution for continuous production lines in both pulp molding and herbal medicine industries. It combines high throughput with the benefits of microwave technology, offering a tailorable and robust system for large-scale drying operations.
Product Description
This high-capacity 14-stage microwave drying tunnel is a heavy-duty solution for continuous production lines in both pulp molding and herbal medicine industries. It combines high throughput with the benefits of microwave technology, offering a tailorable and robust system for large-scale drying operations.
Technical Parameters
| Parameter | Details |
|---|---|
| Model | OSM-WBHG-1320T |
| Number of Cavities | 14 |
| Overall Dimensions (L×W×H) | 23380mm × 1620mm × 1855mm |
| Total Input Power | 136 KW |
| Conveyor Belt Speed | 0.5 - 5 m/min (Delta Inverter) |
| Magnetron Cooling | Water-cooled |
| Power Supply Cooling | Oil-immersed Water-cooled |
| Monitoring | Built-in camera for internal viewing |
Application

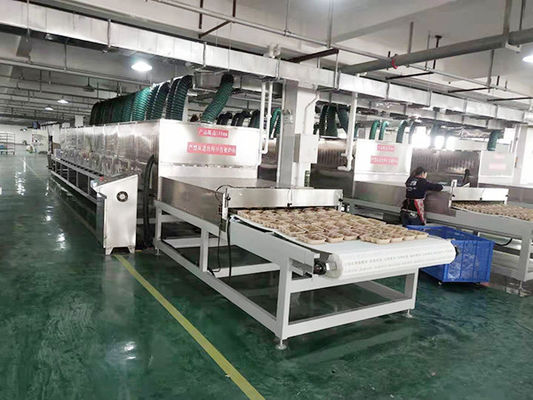

Designed for high-volume drying of pulp molding products and bulk herbal materials, seamlessly integrating into automated production lines.
Customization
As a non-standard customized system, we offer flexibility in the number of stages, overall length, power rating per stage, and additional features like enhanced monitoring or specific safety interlocks.
Feature
-
Multi-Stage Design: Allows for graduated drying, optimizing energy use and final product quality.
-
Continuous Operation: Engineered for 24/7 industrial use with a magnetron lifespan of 6000-8000 hours.
-
Integrated Monitoring: Internal camera system allows real-time visual inspection of the drying process.
Support and Services
Comprehensive after-sales support includes a one-year warranty, remote diagnostics, and the option for on-site technician dispatch (subject to service fees).
Packing and Shipping
The large tunnel is sectioned for safe transport. All parts are clearly marked for easy reassembly. Shipping is FOB from our factory.
FAQ
-
Q: What is the power requirement?
A: 3-phase 5-wire 380V±10% 50Hz±2%. The neutral line must be the same size as the phase line. -
Q: Do you provide the exhaust ducting?
A: No, the external exhaust ducts and environmental protection equipment are to be supplied by the customer.
