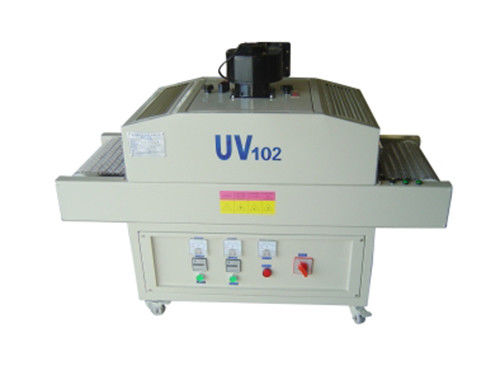

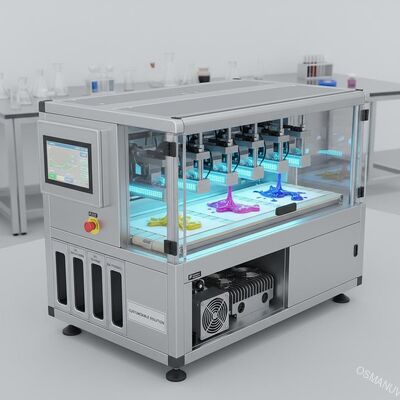

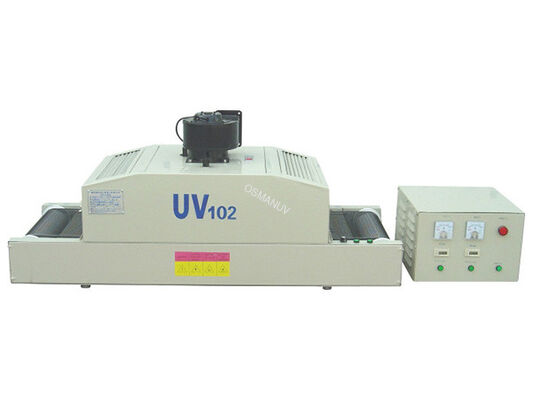

Cold Cure LED UV Curing System for Heat-Sensitive Substrates，R&D, Oil Paint Curing- Customizable Solution
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |

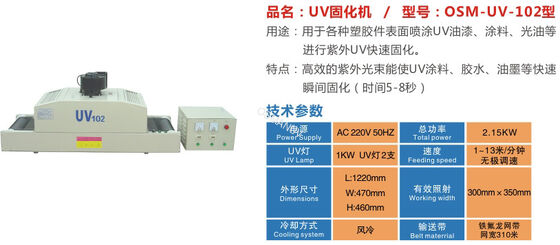

| شماره مدل: | OSM-UV-102 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | جعبه چوبی |
| زمان تحویل: | 30 تا 45 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| ماشین تایپ: | روکش UV | منطقه پوشش: | مساحت بزرگ |
|---|---|---|---|
| قدرت کل: | 2.15 کیلووات | صنایع قابل اجرا: | کارخانه تولیدی |
| برنامه: | کاغذ، مقوا، پلاستیک، ورق های فلزی | اجزای اصلی: | موتور ، موتور |
| اتوماسیون پوشش: | اتوماسیون بالا | کار گسترده: | 300 * 350 میلی متر |
توضیحات محصول
Cold Cure LED UV Curing System for Heat-Sensitive Substrates ,R&D, Oil Paint Curing- Customizable Solution
Product Description:
This Cold Cure LED UV Curing System is specifically engineered for instantaneous curing of solvent-based coatings on heat-sensitive materials like furniture panels and clothing labels. It generates minimal infrared radiation, preventing heat damage to delicate substrates while ensuring a hard, durable, and scratch-resistant finish. The system is fully customizable to match your production line requirements.
Composition of Production Line:
-
Infeed Conveyor
-
LED UV Curing Module with Water Cooling System
-
Power Supply & Control Cabinet
-
Outfeed Conveyor
-
PLC with Touch Screen HMI
Technical Parameters:
| Parameter | Details |
|---|---|
| Model | LCU-Cold Series (Fully Customizable) |
| LED Wavelength | 365nm, 385nm, 395nm, 405nm (Selectable) |
| UV Intensity | Up to 8000 mW/cm² (Peak, Customizable) |
| Effective Cure Width | 300mm, 600mm, 1000mm (Customizable) |
| Conveyor Speed | 0-50 m/min (Adjustable) |
| Power Supply | 380V/220V (Customizable) |
| Cooling System | Closed-loop Water Cooling |
Application:
Instant curing of solvent-based coatings on furniture panels, MDF, clothing labels, plastic films, and other heat-sensitive substrates.
Customization:
We offer extensive customization including curing width, UV wavelength and intensity, conveyor type, and integration with your existing coating line.
Feature:
-
Cold cure process protects heat-sensitive materials.
-
Instantaneous curing significantly boosts production speed.
-
Fully customizable UV intensity and wavelength.
-
Low operating cost & energy consumption.
-
Long LED lifespan (>20,000 hours).
Support and Services:
We provide installation supervision, operator training, remote technical assistance, and readily available spare parts.
Packing and Shipping:
The system is securely packed in export-worthy wooden cases for safe ocean freight and land transportation.
FAQ:
-
Q: Can this system cure thick layers of solvent-based coating?
A: Yes, the system can be customized with higher intensity LEDs and optimized wavelength to ensure complete curing through the coating layer. -
Q: What is the lifespan of the LED modules?
A: Typical lifespan exceeds 20,000 hours, significantly reducing maintenance costs compared to traditional UV systems.
