Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-UVC20-500A |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | جعبه چوبی |
| زمان تحویل: | 30 تا 45 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| روش خشک کن: | اشعه ماوراء بنفش - قابل درمان است | تایپ کنید: | دستگاه استریلیزاسیون UV |
|---|---|---|---|
| مصرف برق: | 100 وات | نوع لامپ: | لامپ UV-C |
| سرعت خرد کردن: | قابل تنظیم | نوع کمربند: | استخوان ماهی |
| منبع نور: | نور UV | منبع تغذیه: | 220 ولت/50 هرتز |
| برجسته کردن: | Industrial UV sterilization tunnel for food packaging,Conveyorized UV sterilization system for bulk items,Inline UV irradiation machine with warranty,Conveyorized UV sterilization system for bulk items,Inline UV irradiation machine with warranty |
||
توضیحات محصول

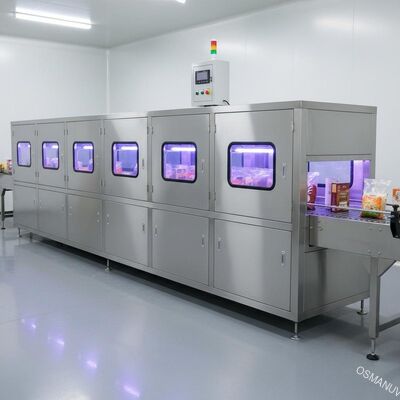

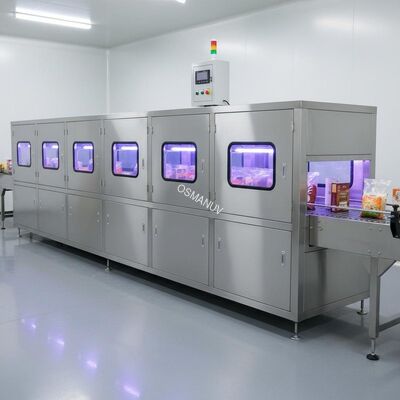

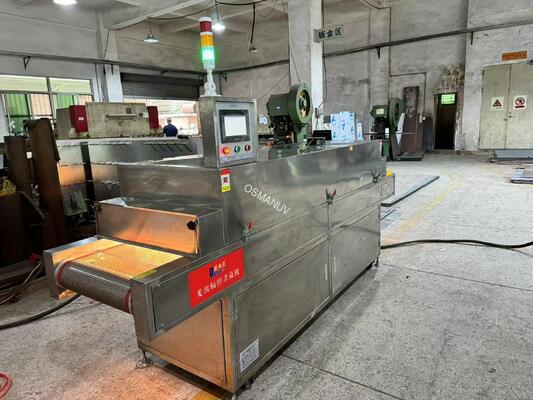

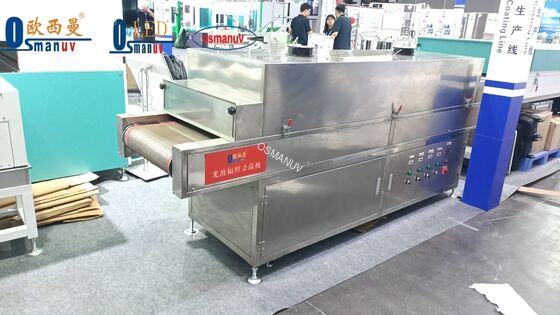

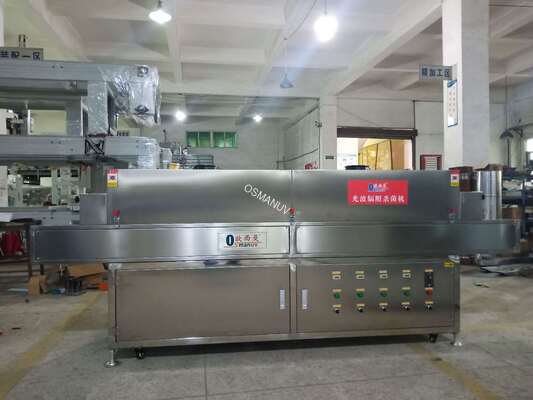

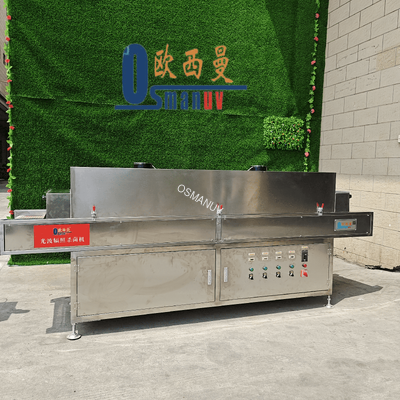

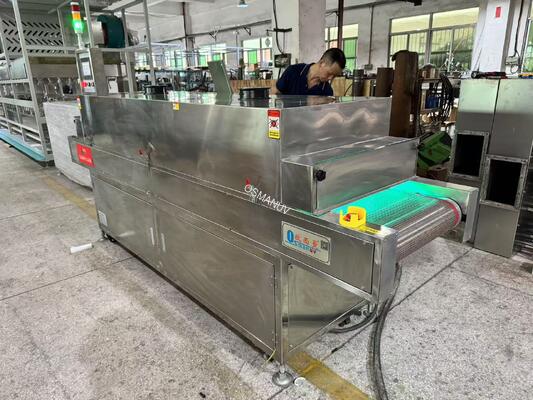

Industrial UV Sterilization Tunnel for Food Packaging & Bulk Items - Conveyorized Inline System
Composition of production line
This integrated system includes an infeed conveyor, stainless steel sterilization chamber with high-intensity UV-C lamps, powered outfeed conveyor, and centralized PLC control panel.
Product Description
Our industrial UV sterilization tunnel is engineered for continuous, high-throughput disinfection of food packaging materials and bulk food items. Utilizing 253.7nm UV-C germicidal lamps, it effectively eliminates up to 99.9% of surface microorganisms, significantly extending product shelf life without chemical residues.
Technical Parameters
| Parameter | Specification |
|---|---|
| Sterilization Method | UV-C Germicidal Lamps (253.7nm) |
| Conveyor Type | Mesh Belt or Flat Belt (Customizable) |
| Belt Width | Standard 500mm, 800mm (Customizable) |
| UV Lamp Configuration | 16-24 pcs of 40W-100W lamps (Customizable) |
| Control System | PLC with Touch Screen HMI |
| Power Supply | 380V/50Hz/3Phase (Customizable) |
| Throughput Capacity | 2-10 m/min (Customizable) |
| Sterilization Efficiency | >99.9% |
Application
-
Food packaging materials sterilization
-
Bulk solid foods surface treatment
-
Ready-to-eat food production lines
-
Dairy and beverage packaging
Customization
This UV tunnel is highly customizable. We can adjust the tunnel length, lamp configuration, and conveyor specifications to meet your specific production requirements. The system can be customized for different product heights and processing speeds.
Feature
-
Continuous inline processing
-
Food-grade stainless steel construction
-
Automatic safety interlocks
-
Energy-efficient design
-
Real-time monitoring system
Support and Services
-
Installation supervision
-
Operator training
-
12-month warranty
-
Technical support
-
Spare parts supply
Packing and shipping
-
Export-standard wooden cases
-
Weather-proof packaging
-
Fumigation-free materials available
-
Professional loading and securing
FAQ
Q: What's the maintenance requirement?
A: Regular lamp replacement (approx. 9000 hours) and quartz sleeve cleaning. We provide customized maintenance schedules.
Q: Can it handle different product sizes?
A: Yes, the system can be customized with adjustable conveyor configurations.
Q: Is professional installation required?
A: We recommend our professional installation service to ensure optimal performance.
