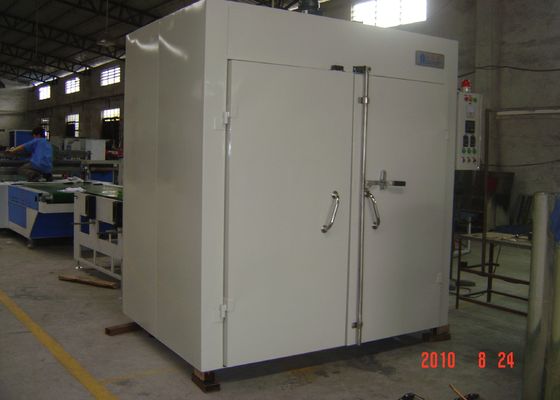

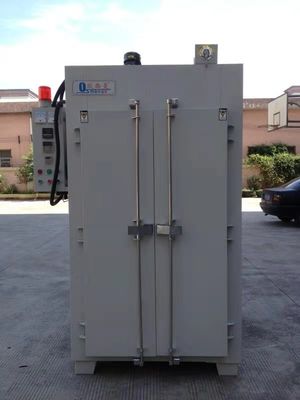

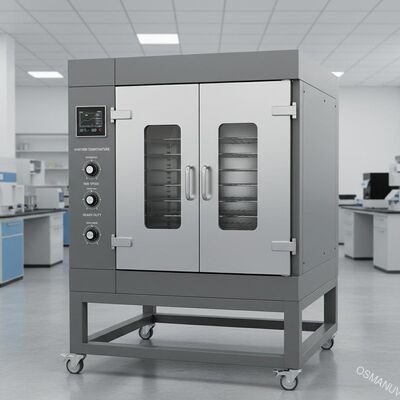

Customizable Temperature Range Industrial Oven with Uniform Temperature Distribution and Heavy-Duty Construction for Electronics and Pharma
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-KX-550IV |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 30-45 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| کمربند انتقال: | مشخصات خانگی/قاب درب | برنامه: | سطح شن و ماسه |
|---|---|---|---|
| ضخامت کار: | 3-80 میلی متر | استفاده: | چاپ دیجیتال |
| Coveyor Power: | 0.75 کیلو وات | طول برس: | 660/1060/1360 میلی متر |
| بسته: | کیس چوبی | ||
توضیحات محصول
Precision Temperature Industrial Oven
Product Overview
This single industrial oven is designed for drying, curing, annealing, baking, and heat treating of various materials in batch processes. It features uniform temperature distribution, robust insulation, and a user-friendly control system. Available in multiple heating methods (electric, gas, steam) and airflow patterns (horizontal/vertical). Customizable parameters include chamber volume, maximum temperature, rack configuration, and exhaust flow rate, making it suitable for R&D labs, pilot plants, and full-scale production lines.
Technical Specifications
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Temperature Range (°C) | RT+20 ~ 250 | Customizable up to 500°C |
| Temperature Uniformity (±°C) | ±2.0 at 200°C | Customizable to ±1.0 or tighter |
| Chamber Volume (L) | 500, 1000, 2000 | Customizable from 50L to 10,000L |
| Interior Dimensions (W×D×H, mm) | 1000×800×1200 | Customizable length/width/height |
| Heating Power (kW) | 6 - 36 | Customizable based on ramp rate |
| Airflow Mode | Horizontal | Customizable vertical or combined |
| Exhaust Flow (m³/h) | 200 - 500 | Customizable with damper control |
| Control Accuracy (±°C) | ±0.5 | Customizable to ±0.1 with oversampling |

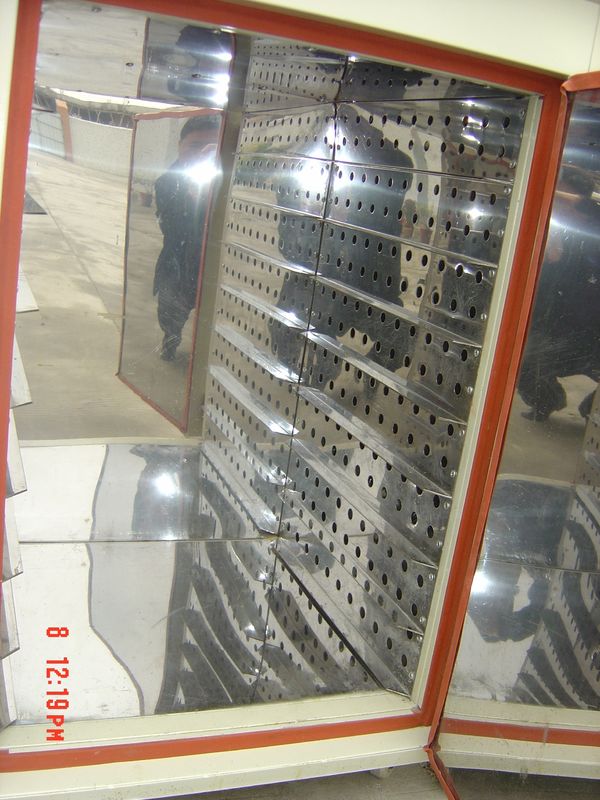

| Shelves / Layers | 2 (stainless steel) | Customizable up to 20 layers or carts |
| Power Supply | 380V, 3-phase, 50/60Hz | Customizable voltage & frequency |
Applications
- Electronics: PCB baking, component drying, conformal coating curing
- Chemical/Pharma: Powder drying, granule drying, stability testing
- Automotive: Paint curing, adhesive bonding, rubber vulcanization
- Food: Moisture removal, sterilization, baking trials
- Metal/Composite: Preheating, annealing, composite curing
- Customizable for explosion-proof, vacuum, or inert atmosphere requirements
Customization Options
We offer comprehensive customization for this single industrial oven, including:
- Heating method: Electric, natural gas, LPG, or steam coil
- Chamber material: Stainless steel 304/316, or carbon steel
- Airflow pattern: Horizontal, vertical, or bidirectional
- Door type: Single swing, double swing, or sliding guillotine door
- Rack/cart system: Fixed shelves, removable carts, or custom tooling fixtures
- Control system: PID, programmable ramp/soak, data logging, remote monitoring
- Safety features: Purge timer, burst panel, high-limit with separate sensor
- Cleanroom compatibility: HEPA filtration, low-particle design
- Exhaust treatment: Catalytic or thermal oxidizer for VOC-laden exhaust
- Customizable dimensions, temperature profile, and cycle recipes
Key Features
- High uniformity - Balanced fan impeller and baffles achieve ≤±2°C across chamber
- Energy efficient - 100mm ceramic fiber insulation reduces heat loss
- Heavy-duty construction - Welded steel frame, operates 24/7 continuous
- Intuitive control - 7″ touchscreen with 50+ program recipes
- Safety package - Over-temperature protection, door interlock, fan failure alarm
- Flexible loading - Forklift channels or floor-level cart access (customizable)
- Data traceability - Optional thermal printer or USB/RS485 Modbus output
Support and Services
- Installation: Remote video guidance or on-site commissioning (customizable)
- Warranty: 2-year standard, customizable extended up to 5 years
- Calibration: Annual temperature mapping service (9 to 36 points, customizable)
- Spare parts: Stocked globally, air-shipped within 48 hours
- Training: Operator and maintenance training (online or on-site, customizable)
- Retrofit: Control system upgrades or additional ports for sensors
Packing and Shipping
- Packing: Stretch-wrapped with anti-rust coating, corner protectors, plywood base
- Shipping options: FOB, CIF, or door-to-door by sea, air, or truck
- Documentation: Commercial invoice, packing list, CE certificate, manual, testing report
- Customizable - Pallet size, labeling, and partial knockdown for container optimization
- Typical lead time: 15 working days for standard, 25-30 for customizable units
Frequently Asked Questions
Q1: How long does it take to reach 200 °C?
A: Approximately 15-25 minutes depending on chamber size. Customizable heating power can shorten ramp time.
Q2: Can I use this oven for solvent-based materials?
A: Yes, but requires customizable explosion-proof venting and purge timer for safety.
Q3: Do you offer ovens with cleanroom certification?
A: Yes. We provide customizable HEPA filtration and smooth-welded interior for ISO Class 5-8 cleanrooms.
