Modular Belt Conveyor System with Customizable Length Width and Height for Automated Production Lines
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | مشخصات |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 15 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| وزن بارگیری: | سفارشی کنید | دمای عملیاتی: | -10 تا 50 درجه سانتی گراد |
|---|---|---|---|
| Z دقت: | 0.004 میلی متر | رنگ کمربند: | آبی، سفید، سبز برای انتخاب |
| عرض باند انتقال: | 650 میلی متر | ولتاژ: | 220 ولت |
| وزن: | 150 کیلوگرم | طول کمربند: | 3000 میلی متر |
| برجسته کردن: | modular belt conveyor system for production lines,customizable conveyor belt machine for automation,adjustable length width height conveyor system |
||
توضیحات محصول
Modular Belt Conveyor
Customizable Length / Width / Height for Automated Production Lines
This conveyor system is designed for efficient, reliable transport of products, components, or bulk materials in manufacturing, packaging, warehousing, and logistics environments. Available in belt, roller, chain, slat, or modular plastic configurations, the system supports straight, inclined, declined, or curved paths. The conveyor is highly customizable in dimensions, speed, material, and automation level to integrate seamlessly into new or existing production lines. Ideal for food, automotive, electronics, pharmaceutical, and e-commerce industries.
Technical Parameters
| Parameter | Standard Specification | Customizable Options |
|---|---|---|
| Conveyor type | Belt conveyor | Yes - roller / chain / slat / modular plastic / magnetic / vacuum |
| Conveyor length | 3000 mm (standard section) | Yes - any length from 500 mm to 50+ meters |
| Conveyor width | 400 mm | Yes - 100 mm to 2000 mm |
| Belt/roller material | PVC belt (green) | Yes - PU / silicone / rubber / steel roller / plastic roller |
| Frame material | Carbon steel (painted RAL7035) | Yes - SS304 / SS316L / anodized aluminum |
| Load capacity | 50 kg/m | Yes - 10 kg/m to 500 kg/m (or 2000 kg per pallet) |
| Conveying speed | 0-15 m/min (fixed) | Yes - 0-30 m/min with VFD / servo motor |
| Incline angle | 0° (horizontal) | Yes - up to 45° (with cleated belt or pocket chain) |
| Motor power | 0.37 kW | Yes - 0.12 kW to 7.5 kW |
| Power supply | 380V / 50Hz / 3-phase | Yes - 110V / 220V / 415V / 60Hz / 1-phase |
| Operating temperature | -5°C to +50°C | Yes - high-temp (+200°C) / low-temp (-30°C) |
Applications
- Manufacturing assembly lines - automotive, appliance, electronics, machinery
- Packaging & filling - bottle, carton, bag, can conveying
- Warehousing & logistics - sorting, merging, diverting, accumulation
- Food processing - stainless steel washdown conveyors (customizable for wet environment)
- Pharmaceutical & cleanroom - customizable with static-free belt and sealed frame
- E-commerce fulfillment - telescopic belt conveyor for truck loading/unloading
- Mining & heavy industry - customizable impact bed and heavy-duty rollers
- Airport baggage handling - customizable curved and merging sections
Customization Options
This conveyor system is fully customizable to your exact application requirements:
- Dimensions - Customizable length, width, and height (including floor-to-floor incline)
- Belt type - Customizable: smooth grip / chevron cleat / sidewall / wire mesh / chain slat
- Drive position - Customizable: end drive / center drive / top drive / bottom drive / drum motor
- Side guides - Customizable height, material (nylon / stainless steel / UHMW)
- Stand configuration - Customizable fixed height, adjustable legs, or mobile casters
- Control system - Customizable: simple on/off, VFD speed control, PLC integration (Profibus / Ethernet IP / Modbus)
- Safety features - Customizable: emergency pull cord, belt misalignment switch, slip monitor
- Color - Customizable any RAL code + branded powder coating
- Environment adaptation - Customizable: waterproof (IP65/IP69K), explosion-proof (ATEX), cleanroom (ISO 5-8)
Key Features
- Modular design - easy to extend, shorten, or reconfigure
- Low maintenance - sealed bearings and wear-resistant belt (customizable self-lubricating chain)
- Quiet operation - < 70 dB at full speed (customizable noise-reduction enclosure)
- Anti-static option - for electronics and explosive environments (customizable)
- Accumulation capability - zero-pressure or minimum-pressure accumulation (customizable sensor layout)
- Quick belt change - hinged frame design on selected models (customizable tool-less access)
- Energy efficient motor - IE3 / IE4 class (customizable with energy feedback drive)
Support and Services
- Layout design assistance - free CAD drawing for your line integration (customizable revision limits)
- Installation guidance - video + manual (customizable on-site supervision available)
- Remote support - 24/7 via WhatsApp / WeChat / TeamViewer (customizable SLA response time)
- Spare parts - available for 10+ years (customizable recommended parts kit upon order)
- Preventive maintenance contract - customizable frequency (monthly / quarterly / annually)
- Training - operator + technician training (customizable duration: 1-5 days / on-site or remote)
- Warranty - 18 months standard (customizable extended to 24-36 months)
Packing and Shipping
- Packing method - Belt/rollers wrapped in stretch film with anti-rust oil, frame disassembled into sections for container loading, plywood cases for control panel and motor (customizable with shock indicators), customizable with pallet jack pockets for easy unloading
- Shipping terms - FOB / CIF / EXW / DAP / DDP (customizable port: Shanghai / Ningbo / Shenzhen / Qingdao / Tianjin)
- Lead time - Standard conveyor (existing design): 10-15 working days, Fully customized system: 20-35 working days, Customizable rush order: +20% for 10-day delivery
- Container loading - 20GP / 40GP / 40HQ (customizable loading plan provided)
Frequently Asked Questions
Q1: What is the maximum conveyor length for a single drive?
A: It depends on belt type and load. Standard belt conveyor: up to 30 meters. For longer lengths, we offer customizable multi-drive or intermediate drive configuration.

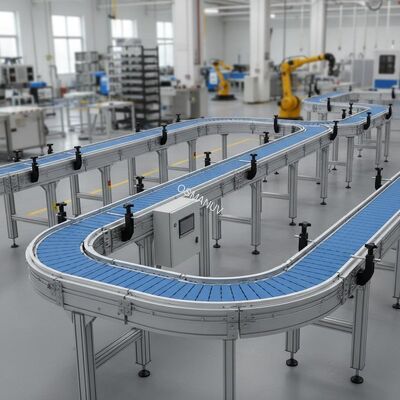

Q2: Can I get a curved conveyor?
A: Yes. We offer customizable curved belt conveyors (30°, 45°, 60°, 90°, 180°) and chain conveyors with any turning radius.
