Rotary Spin Coating System for Sustainable Pulp Molded Products
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | OSM-XT-3200T |
| سند: | Version 2.0 of 24-station s...on.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 60 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| ولتاژ: | 220V ، 380V ، 380V/220V ، 220V/380V ، 380V/50Hz | وضعیت: | جدید |
|---|---|---|---|
| خدمات پس از فروش ارائه شده است: | مهندسان موجود برای ماشین آلات خدمات در خارج از کشور ، پشتیبانی فنی ویدیویی ، پشتیبانی آنلاین ، پشتیب | بعد (l*w*h): | اندازه سفارشی ، 2580*1130*1140mm ، 1000*2575*1750mm ، 1200*620*550mm (L*W*H) ، 1030*1000*620mm |
| ضمانت: | 1 سال، یک سال، 12 ماه | قدرت: | 3kW ، 16kW ، 65.3kW ، 4.2kW ، 0.75kW/220V/50Hz |
| نام محصول: | خط ماشین پوشش چرخش 24 ایستگاه | سرعت: | قابل تنظیم |
| برجسته کردن: | rotary spin coating system for pulp molding,biodegradable film precision application machine,pulp molding coating machine with warranty,biodegradable film precision application machine,pulp molding coating machine with warranty |
||
توضیحات محصول

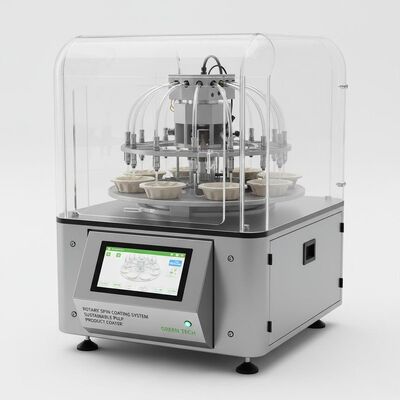

Rotary Spin Coating System for Sustainable Pulp Molded Products

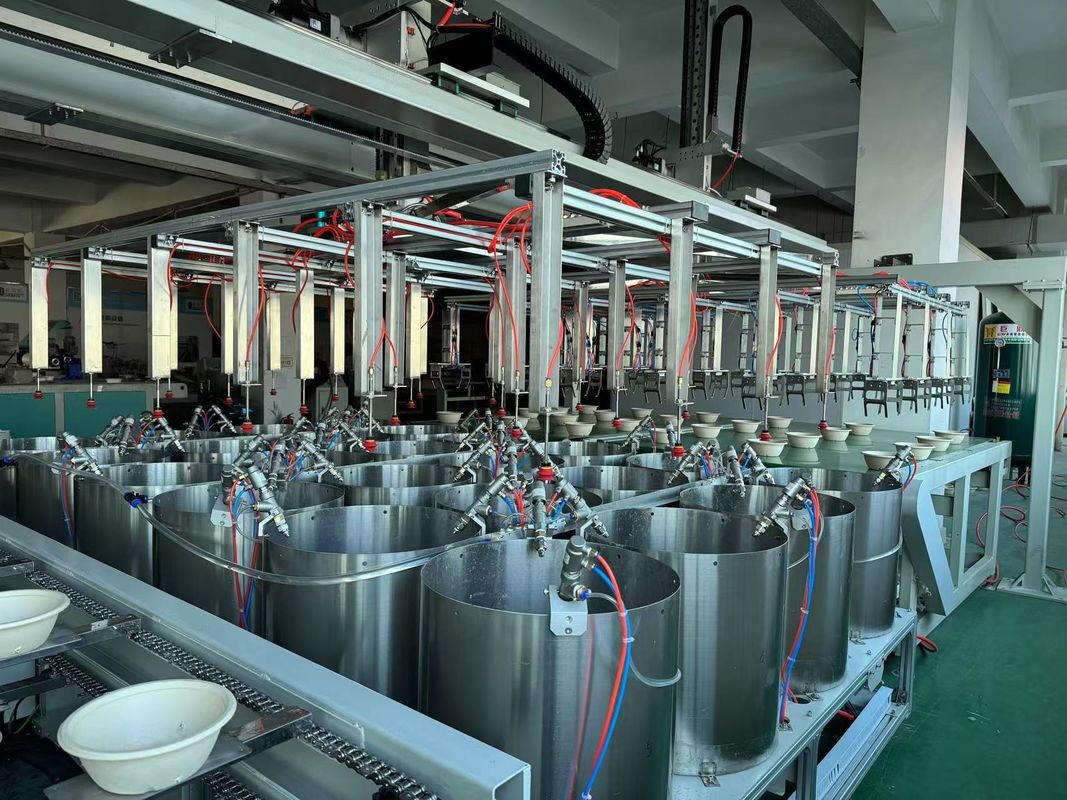

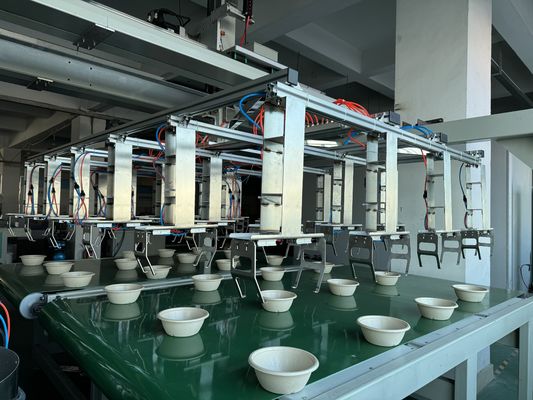

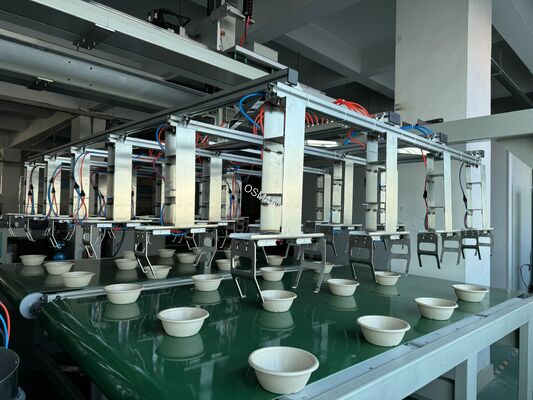

Composition of Production Line:
This precision line features a servo-driven indexing system, 24 individually programmable stations, high-precision ultrasonic spray or low-flow spray valves for minimal waste, a controlled climate pre-dry zone, a energy-efficient IR drying machine, and a final cooling conveyor.
Product Description:
This advanced rotary spin coating line is designed for applying the latest biodegradable, compostable, or UV-curable coatings to premium and sustainable pulp packaging. It focuses on precision application to minimize material usage—a critical cost factor for specialty coatings—while ensuring perfect performance. Ideal for high-value products in the electronics, cosmetic, and organic food sectors.
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-XT-3200T |

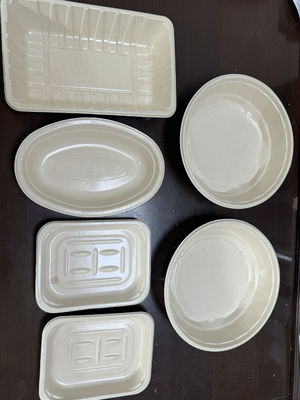

| Suitable Product | Premium Pulp Packaging, Electronics Trays, Cosmetic Containers |
| Number of Stations | 24 |
| Coating Technology | Programmable Ultrasonic Spray / Low-Flow Spin Coating |
| Coating Type | Biodegradable (PLA, PHA), Water-Based, UV-Curable |
| Curing Method | Customizable (UV-LED, NIR, or Low-Temp Hot Air) |
| Control System | Advanced PLC with IoT connectivity for data monitoring |
| Coating Weight Accuracy | ±2% |
Application:
Applying ultra-thin, functional barriers and aesthetic coatings to premium pulp molded products requiring home or industrial compostability certifications.
Customization:
Highly customizable based on coating chemistry. Options include ultrasonic spray heads for ultra-low viscosity materials, UV-LED curing for instant cure, or NIR for gentle drying of heat-sensitive biopolymers.
Feature:
- Precision Application: Ultrasonic spin coating technology drastically reduces overspray and material consumption.
- Sustainable Focus: Compatible with the latest bio-based and compostable coating formulations.
- Gentle Curing: UV-LED or NIR options prevent thermal degradation of sensitive pulp substrates.
- Data Tracking: IoT connectivity allows for monitoring of production metrics and quality control.
Support and Services:
Extensive application development support, partnership with coating material suppliers, and remote diagnostics.
Packing and Shipping:
High-precision spray valves are shipped in separate, shock-proof packaging. The entire system is covered for dust and moisture protection.
FAQ:
Q: Can this line handle very thin, water-based coatings without clogging?
A: Yes. The ultrasonic spin coating technology is specifically designed for low-viscosity, particle-free fluids and is far less prone to clogging than conventional air spray nozzles, ensuring consistent application and minimal maintenance.
