Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | CE |
| شماره مدل: | OSM-SXT-450T |
| سند: | CE-Single station spin caot...ne.pdf |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 30 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| نام محصول: | ماشین پوشش تک ایستگاهی | مشخصات: | 700mm L*420mm W*1135mm H |
|---|---|---|---|
| وزن: | وزن خالص: 120 کیلوگرم ؛ وزن ناخالص: 130 کیلوگرم | ولتاژ: | 380 ولت 50 هرتز |
| قدرت: | 500 وات | سرعت چرخش: | 1150 دور در دقیقه (حداکثر سرعت) |
| ضمانت: | 1 سال | ||
توضیحات محصول
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Product Description

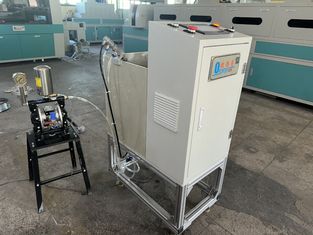

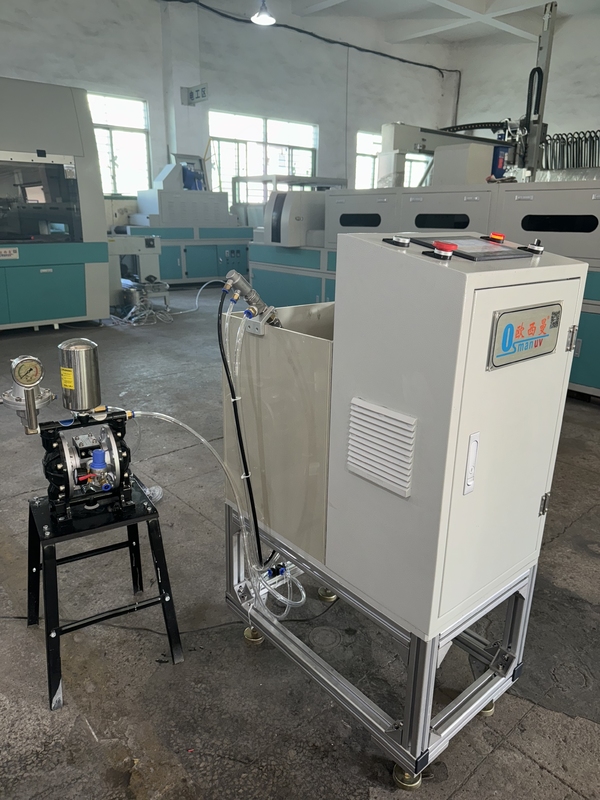

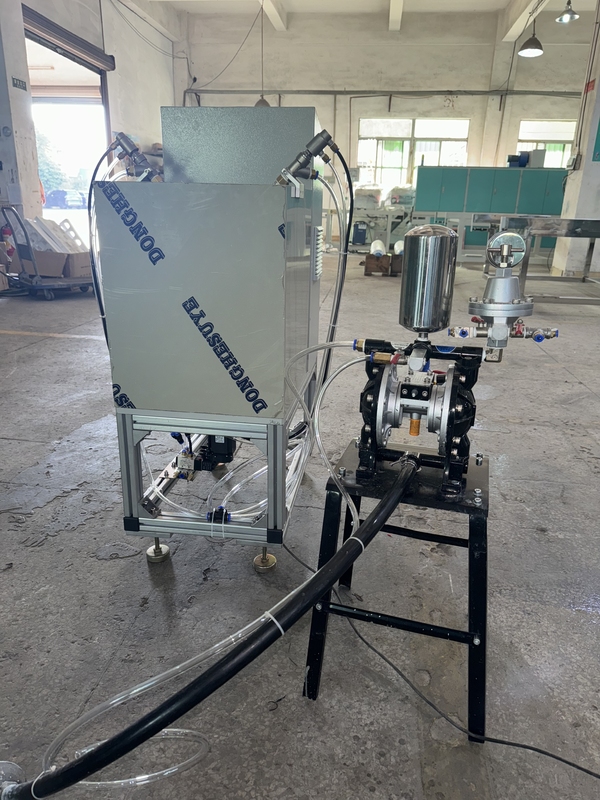

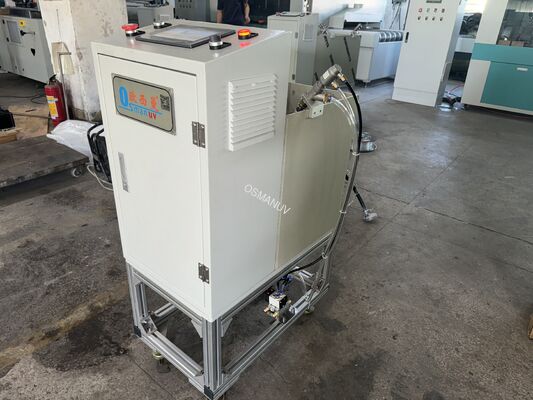

This eco-centric single-station coating machine is specifically designed for applying bio-based coatings to sustainable pulp molds from straw, bamboo, and sugarcane bagasse. It supports the production of 100% compostable and biodegradable packaging by ensuring an even, effective barrier layer without compromising environmental credentials. The system is highly customizable for various bio-coating viscosities and curing requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-SXT-450T |
| Power Supply | 380V/50Hz |
| Power Consumption | 2.2 kW (Energy Efficient) |
| Heating Option | Customizable IR pre-drying module available |
| Coating Capacity | 100-400 pieces/hour |
| Rotation Speed Range | 50-1200 RPM (optimized for bio-coatings) |
| Control System | Microprocessor with simple interface |

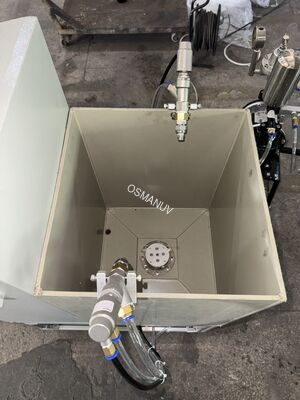

| Coating Reservoir | Easy-clean, corrosion-resistant tank |
| Dimensions (LxWxH) | 1400mm x 1200mm x 1500mm |
Application
-
Perfect for applying PLA or other bio-polymer coatings to straw and bamboo pulp-based products.
-
Coating for fully compostable sugarcane bagasse tableware requiring certified coatings.
Feature
-
Bio-Coating Optimized: Designed for the specific flow characteristics of bio-based coatings.
-
Easy Cleaning: Simplified design with minimal parts for quick and easy cleaning between batches.
-
Low Energy Consumption: Focuses on reducing the overall carbon footprint of the coating process.
-
GreenTech Compliance: Ideal for manufacturers aiming for BPI or OK Compost INDUSTRIAL certifications.
Customization
Key customizable features include:
-
Drying Integration: Can be customized with integrated IR or hot air modules for in-line pre-drying.
-
Material Compatibility: Adjustable parameters for different bio-coating types and viscosities.
-
Safety Features: Enhanced safety interlocks can be added as per request.
Support and Services
Dedicated support for sustainable packaging producers, including assistance with coating selection and process optimization for bio-materials.
Packing and Shipping
All components are packed with recyclable and biodegradable materials where possible, aligned with our commitment to sustainability.
FAQ
-
Q: Can this machine handle PLA coatings effectively?
-
A: Absolutely. The rotation speed and application process are customizable to handle the specific viscosity and drying behavior of PLA coatings.
-
-
Q: Is the machine suitable for a lab or R&D setting?
-
A: Yes, its small footprint and programmable recipes make it ideal for both R&D and small-batch production.
-
