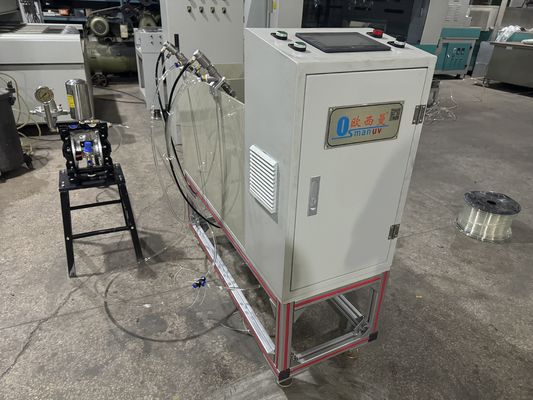

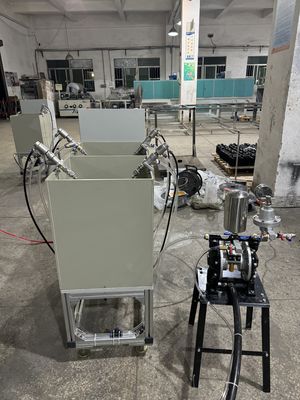

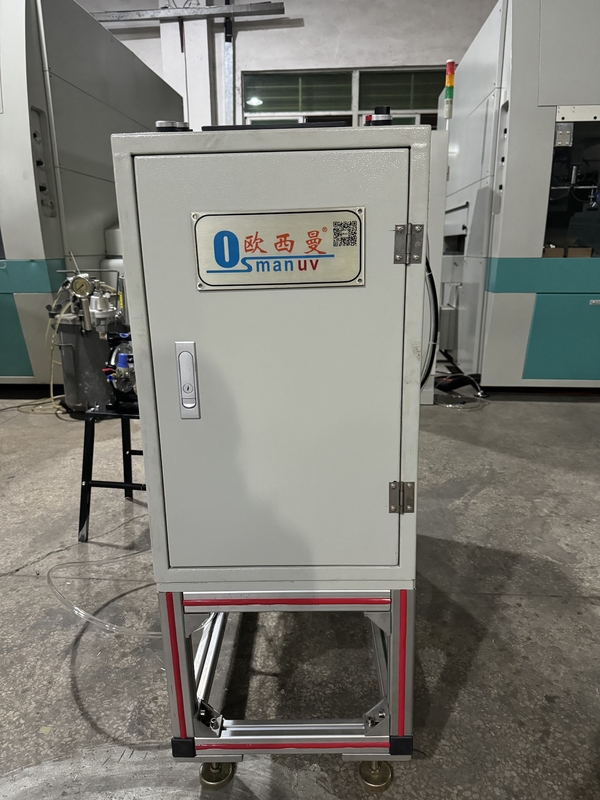

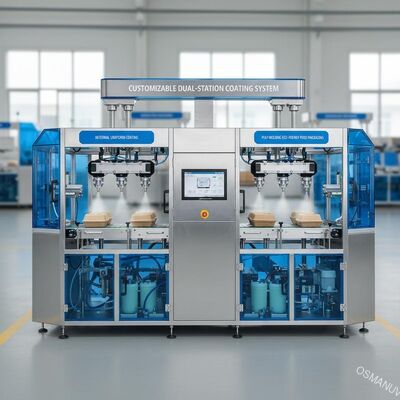

Customizable Dual-Station Coating System | For Internal Uniform Coating of Pulp Molding Eco-friendly Food Packaging

Customizable Dual-Station Coating System | For Internal Uniform Coating of Pulp Molding Eco-friendly Food Packaging

1. Composition of Production Line

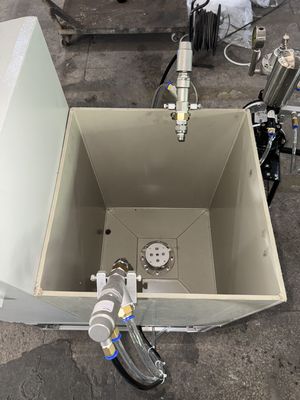

This adaptable coating system is built around a customizable dual-station rotary or shuttle table. Its modular composition includes: a flexible loading station, the core dual-station coating chamber with adaptable application tools, a programmable multi-axis manipulator, a modular drying zone, and a customized unloading solution. All are controlled by a system designed for variable process parameters.

2. Product Description
This Customizable Dual-Station Coating System is an engineered solution for applying uniform functional coatings to the internal surfaces of complex, non-standard molded pulp products, such as specialty packaging, electronics trays, or shaped furniture components. It overcomes the challenge of coating irregular geometries by offering tailored fixtures and application paths, ensuring complete coverage even in deep draws and undercuts.

3. Technical Parameters

4. Application
Ideal for specialty and industrial molded pulp products with complex shapes: Electronics and cosmetic packaging inserts, Wine bottle shippers and gift boxes, Automotive part holders, Furniture components, Any non-standard item requiring internal barrier or aesthetic coating.

5. Customization
This system is defined by its customization. We conduct a joint engineering analysis of your specific product(s) to determine the optimal:

• Fixture Design: Custom 3D-printed or machined holders that securely present the complex part for coating.

• Application Path & Tooling: Custom robot path programming and selection of nozzle/dipper head for your coating material.

• Process Integration: Custom integration level with your upstream molding and downstream handling.

6. Features & Advantages

• Engineered for Complexity: Solves the coating challenge for shapes impossible on standard equipment.

• Maximum Flexibility: One system can be configured with different fixtures to run multiple, dissimilar products.

• Precision & Repeatability: Automated, programmed application ensures every unit, regardless of shape, receives the exact same coating.

• Reduced Waste & Rework: Eliminates inconsistent manual coating, dramatically reducing scrap rates.

• Future-Proof Design: Modular architecture allows for reconfiguration or upgrades as your product line evolves.

7. Support and Services

• Pre-Sales Engineering Consultation to define the optimal custom solution.

• On-site installation, comprehensive programming, and operator training on your specific products.

• Dedicated support package including access to fixture design files and application programming support.

8. Packing and Shipping
All system modules are securely packed in custom-sized wooden crates. Given the custom nature, shipping logistics are finalized per project. Lead time is project-dependent, following the custom design freeze.

9. FAQ

• Q: What's the process for getting a system for our unique product?

  • A: We start with a consultation and sample analysis. You send us product samples and coating specs. We then propose a customized system design, including fixture concept and process flow, for your approval.

• Q: How long does it take to change over between two different products?

  • A: Changeover time depends on the level of customization. With quick-change fixtures, it can be as fast as swapping a holder and loading a different program (minutes). Major shape changes may require new custom fixtures.

• Q: Is there a minimum order quantity for a custom system like this?

  • A: This is a capital equipment solution. We build the system to your specification. The value is in enabling the production of your high-value, complex parts, regardless of batch size.
