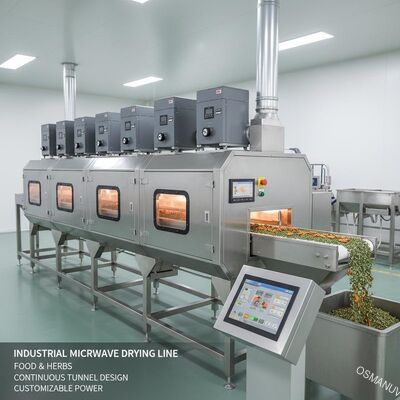

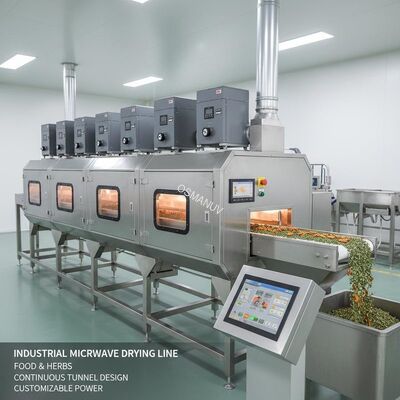

Industrial Microwave Drying Line for Food & Herbs – Continuous Tunnel Design with Customizable Power
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | OSMANUV |
| گواهی: | ISO9001 |
| شماره مدل: | مشخصات |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 مجموعه |
|---|---|
| قیمت: | قابل مذاکره |
| جزئیات بسته بندی: | بسته بندی چوب |
| زمان تحویل: | 30-45 روز |
| شرایط پرداخت: | T/T |
| قابلیت ارائه: | مذاکره |
|
اطلاعات تکمیلی |
|||
| ظرفیت: | 5-500 کیلوگرم در دسته | سیستم حمل و نقل: | سروو موتور |
|---|---|---|---|
| ظاهر: | کمربند کاروان | سرعت تولید: | 15-25 متر در دقیقه |
| ویژگی های ایمنی: | حفاظت در برابر گرمای بیش از حد، حفاظت در خلاء | راندمان گرمایش: | بالا |
| سیستم کنترل: | PLC | مواد: | فولاد ضد زنگ |
| برجسته کردن: | Industrial microwave drying line,Continuous tunnel microwave dryer,Customizable power microwave equipment |
||
توضیحات محصول
This customizable microwave drying line uses volumetric heating to remove moisture evenly from materials without surface overheating. Available in continuous tunnel, batch cabinet, and multi-pass configurations. The system is fully customizable in power (kW), belt width, number of magnetrons, and drying length. Ideal for heat-sensitive products like herbs, spices, nuts, fruits, vegetables, and industrial pastes. PLC control allows precise temperature and belt speed adjustment for different materials.
| Parameter | Continuous Tunnel Dryer | High-Capacity Dehydration System | Compact Batch Dryer |
|---|---|---|---|
| Microwave power (customizable) | 6-200 kW | 20-500 kW | 1-10 kW |
| Belt width (customizable) | 400-2000 mm | 600-2500 mm | 300-600 mm |
| Drying length (customizable) | 3-20 m | 5-30 m | 1-2.5 m |
| Number of magnetrons (customizable) | 6-200 pcs | 20-500 pcs | 2-12 pcs |
| Belt speed | 0.1-5 m/min | 0.2-8 m/min | 0.5-3 m/min |
| Processing temperature | 40-120°C | 40-110°C | 40-100°C |
| Moisture removal rate | up to 80 kg/h | up to 300 kg/h | up to 8 kg/h |
| Control system | PLC + HMI touchscreen | PLC + remote monitoring | PLC or digital timer |
- Food industry: Drying fruits, vegetables, nuts, meat jerky, pasta
- Herbal & pharmaceutical: Drying ginseng, chamomile, medicinal powders
- Industrial materials: Ceramic cores, rubber vulcanization, wood drying
- Chemical & agricultural: Pigments, fertilizers, flower buds
This drying line is highly customizable in many aspects:
- Microwave power and number of generators
- Belt material (PTFE mesh, stainless steel chain, or customizable fabric)
- Tunnel length and width
- Multi-layer or multi-pass configuration for limited floor space
- Hot air supplement for surface drying
- Explosion-proof design for solvent-based materials
- Cooling zone integration at outlet
- Volumetric heating - no temperature gradient
- Energy efficient (up to 60% vs hot air drying)
- Short drying time (minutes vs hours)
- PLC auto-control with data logging
- No thermal damage to sensitive materials
- Compact footprint for continuous production
- Free material testing in our lab
- Custom layout design and on-site commissioning
- Operator training included
- 24/7 remote technical support
- 18-month warranty on magnetrons (prorated)
Packing: Antistatic film + reinforced plywood case with foam padding for magnetrons
Shipping: FOB Qingdao / CIF by sea or air. Lead time: 30-45 days after customization confirmation (bulk magnetrons require longer procurement for >100kW systems).
Yes, we offer free lab testing and will customize power, belt speed, and tunnel length based on your material's moisture profile.
Yes, our system uses low-temperature microwave drying (40-80°C), which preserves color, flavor, and active ingredients - fully customizable via PLC temperature control.
The system is modular. You can customize additional microwave cavities later to increase capacity without replacing the whole line.
